Products
Earthing, lightning protection, cable management and solar mounting products, manufactured in our Howrah unit and supplied across India. Click any product for its full specifications.
Chemical earthing electrodes
A conductive electrode surrounded by backfill compound keeps earth resistance low and stable for years, with almost none of the watering and maintenance that traditional pipe earthing needs. We manufacture electrodes in G.I, copper bonded and pure copper.
Copper bonded electrode
48, 58 and 76 mm dia. 2 m and 3 m length.
A steel core molecularly bonded with copper, giving copper’s conductivity and corrosion resistance at a lower cost than solid copper.
G.I chemical earthing electrode
48, 58, 76 and 100 mm dia. 2 m, 3 m and 6 m length.
Galvanised iron electrode for chemical earthing.
Pure copper chemical earthing electrode
39, 54 and 79 mm dia. 3 m length.
Solid copper throughout, giving the highest conductivity and the longest service life in aggressive, salty or waterlogged soil.
Copper bonded rod
13 to 25 mm dia. 1 m to 3 m length.
Driven rod electrode with a copper bonded surface.
G.I perforated pipe
25 to 100 mm dia. 2 m and 3 m length.
Perforations let the backfill compound make contact with the soil along the full length of the pipe, which lowers resistance and keeps it stable through dry months..
Backfill compound and earthing materials
Backfill compound is packed around the electrode to fill the gaps between metal and soil. It holds moisture, lowers resistance and protects the electrode, which matters most in dry, sandy or rocky ground.
BFC Commercial
25 kg bag.
Our general-purpose backfill compound for everyday earthing installations, supplied in sealed 25 kg bags..
BFC Standard
25 kg bag. Grades: Standard, Advance, Premium, Elite.
Higher grades hold moisture for longer and keep resistance lower through the dry season.
Earthing gel
Supplied per project requirement.
An earthing enhancement compound in gel form, used where the pit suits a gel better than a dry powder, or for topping up an existing installation..
Earthing salt
Supplied in bulk.
Traditional earthing material, layered with charcoal around pipe and plate electrodes to hold moisture and improve conductivity..
Copper earthing materials
Copper carries fault current with the least resistance and lasts longest in corrosive soil. We supply standard sizes from stock and fabricate to your drawing. Our copper strip and busbar are 99% pure.
Copper strip
Width 25 to 75 mm. Thickness 2 to 6 mm.
The main conductor between equipment and the earth pit, and the conductor used to form earth grids and mats.
Copper wire
4, 6, 8, 10 and 16 SWG.
Round copper conductor for earthing runs, bonding and lightning protection down conductors, where a flexible round section routes more easily than a flat strip..
Copper earthing plate
300 × 300 to 600 × 600 mm. 2 mm and 3 mm thick.
Plate electrode buried in a pit to spread fault current over a large surface area.
Copper busbar and earth bar
Width 25 to 75 mm. Thickness 2 to 6 mm.
A single bar that brings many earthing connections together at one tidy, inspectable point.
Flexible copper cable
6 to 95 sq mm.
Stranded copper cable for connections that need to flex, or where a solid strip cannot be routed.
Also supplied in this range:

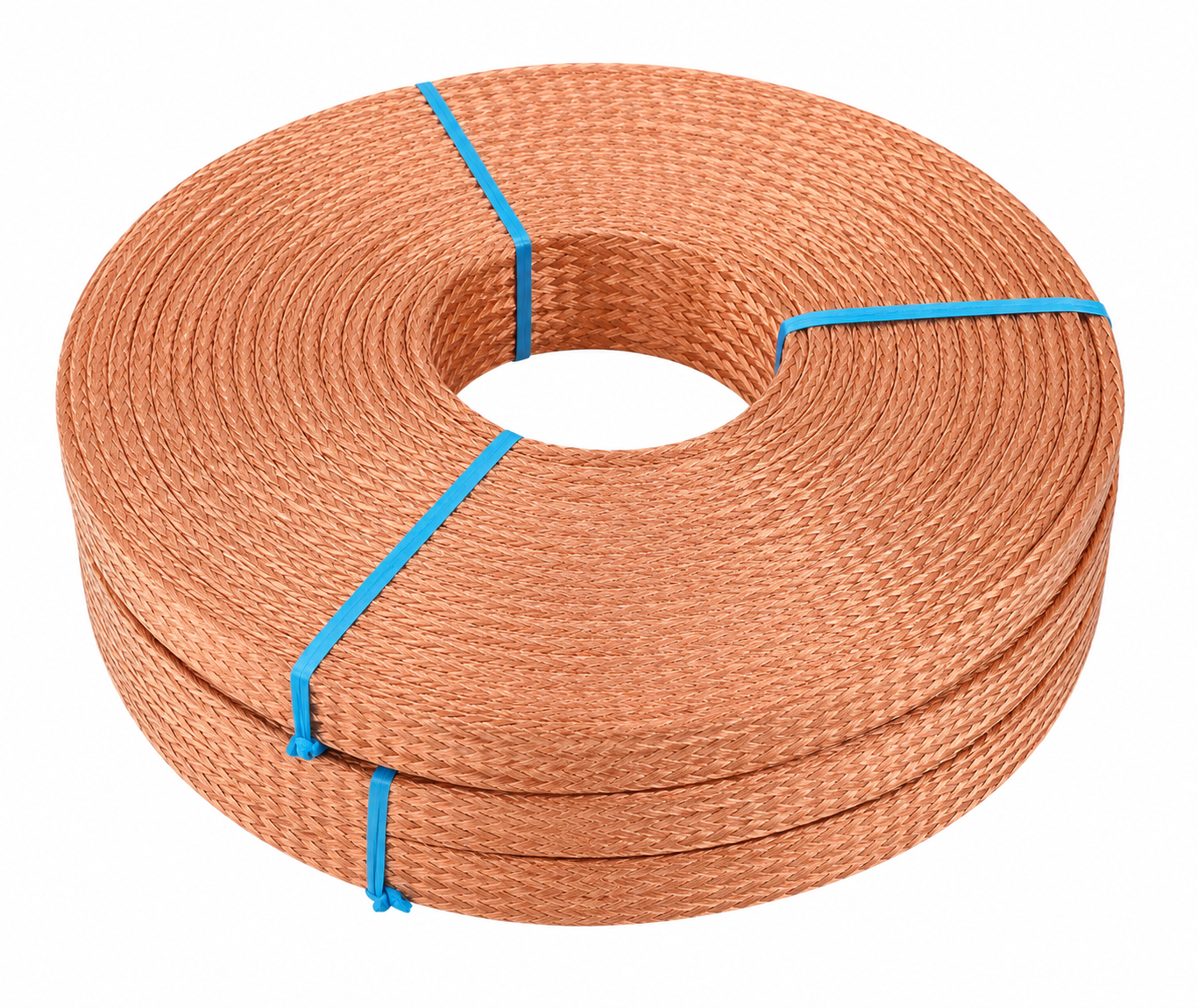

- Flexible copper braids and jumpers
- Cable lugs
- Earth clamps and connectors
G.I earthing materials
Galvanised iron gives good conductivity at a lower cost than copper, and the zinc coating protects the steel underneath. We supply most standard G.I earthing items in bulk for contractors and project sites.
G.I strip
Width 25 to 75 mm. Thickness 2 to 6 mm.
The most commonly used earthing conductor on Indian sites, for runs from panel to pit and for forming earth grids..
G.I wire
4, 6, 8, 10 and 16 SWG.
Galvanised round conductor for earthing runs and bonding where cost is the deciding factor..
G.I earthing plate
300 × 300 and 600 × 600 mm. 2, 3 and 6 mm thick.
Galvanised plate electrode for traditional plate earthing pits, laid with salt and charcoal around it..
G.I busbar
Width 25 to 75 mm. Thickness 2 to 6 mm.
Collects multiple earthing connections at one point, in galvanised iron for general applications where copper is not required..
G.I saddle
25 × 3, 25 × 6, 50 × 6 and 50 × 8 mm.
Fixes earthing strip neatly to a wall or structure and holds it at the correct spacing, so the run stays tidy and inspectable..
Also supplied in this range:
- G.I pipes and pipe electrodes
- G.I clamps and connectors
- G.I hardware
Earth pit covers and chambers
The pit cover protects the joint between electrode and conductor, keeps soil and rubbish out, and lets you open the pit for inspection and resistance testing without digging.
C.I pit cover
12″ × 12″, 18″ × 18″ and 24″ × 24″.
Heavy cast iron cover for locations with vehicle or foot traffic, where strength matters more than weight.
FRP pit cover and chamber
6″, 10″ and 12″.
Fibre-reinforced plastic: light, corrosion-proof and easy for one person to lift during testing.
Also supplied in this range:
- RCC pit covers
- Inspection chambers
Lightning protection
A lightning protection system gives a strike a controlled path to earth, so the current passes safely around the structure instead of through it. The air terminal, the mast, the down conductor and the earth pit all have to work together.
ESE lightning arrester
Supplied per project requirement.
An Early Streamer Emission terminal releases an upward leader earlier than a plain rod, so a single terminal can protect a wider area.
Copper bonded lightning arrester
12 and 14 mm dia. 1 m and 1.5 m length.
Multi-spike conventional air terminal with a copper bonded finish, for straightforward lightning protection at moderate cost..
Brass copper coated lightning arrester
12, 14 and 16 mm dia. 1 m to 2 m.
Copper-coated brass terminal giving a reliable conductive path with good resistance to weather..
G.I lightning arrester, pipe type
Supplied per project requirement.
Galvanised pipe-type air terminal on a bolt-down base plate.
Pure copper lightning arrester
Pipe type 20 and 25 mm. Rod type 12 to 25 mm.
Solid copper air terminal for maximum conductivity and service life, in pipe and rod forms..
G.I mast
3 m, 5 m and 6 m.
Galvanised mast that raises the air terminal to the height the protection design requires.
L.A mast accessories
Anchor bolts, guy wire, clamps and fixings.
The mounting set that holds a mast straight and stable: anchor fasteners, eye bolts, steel wire rope and wire clips..
Digital lightning strike counter
Model VE-DLSC-01. IP67.
Records how many strikes the system has taken.
Also supplied in this range:
- Air terminals
- Down conductors
- Earth discharge rods
- Surge protection devices (SPD)
Earthing clamps and accessories
The clamp is the joint between conductor and electrode. A poor clamp undoes the work of a good electrode, so ours are made in brass and stainless steel to hold a tight, low-resistance connection for years.
Brass earthing clamp
17, 20 and 25 mm.
Cast brass clamp that grips rod and conductor together with a single bolt.
Stainless steel earthing clamp
17, 20 and 25 mm.
Stainless clamp for wet, coastal or chemically aggressive locations where brass would corrode faster..
Also supplied in this range:
- Cable lugs
- Cable glands
- Ferrules
- Connectors and bonding clamps
Cable management and infrastructure
Trays, supports and enclosures that keep cabling organised, ventilated and reachable. Available in HDG, G.I, MS and stainless steel.
Perforated cable tray
75 to 600 mm wide. 2.5 m length.
Perforations let air move around the cables and let you fix cable ties anywhere along the run, which makes later additions easy..
Ladder cable tray
100 to 600 mm wide. 2.5 m length.
Open rung design for heavy power cables, giving maximum ventilation and easy access when cables are added or changed..
Tie rod
M8, M10, M12 and M16.
Threaded rod that suspends trays and equipment from a ceiling or structure, cut to the drop your layout needs..
Junction box
Standard and custom sizes.
Galvanised enclosure that protects cable joints and terminations from dust and damage, with knockouts for entries and an earthing stud inside..
C channel
40 × 15 × 15 mm.
Structural support section used with tie rods to carry trays and mount equipment..
PVC cable tray
Coming soon.
A lightweight non-metallic tray for locations where a metal tray is unsuitable, such as corrosive or wash-down areas..
Also supplied in this range:
- Cable tray covers and support systems
- Strut channels and accessories
- Aluminium armoured cable, 6 to 95 sq mm
- Cable cleats and fixing systems
- Custom metal fabrication
Solar equipment and mounting
Mounting hardware and balance-of-system parts for rooftop and ground-mounted solar, including the earthing every solar plant needs.
Solar panel clamps
Mid clamps and end clamps. VE-IC and VE-EC series.
Clamps that hold modules to the rails.
Solar mounting structure
Rooftop and ground-mounted. Made to site.
The frame and rails that carry the panels at the right tilt and orientation, designed around your roof or land..
Solar cables and connectors
Including MC4 connectors.
UV-resistant DC cable and locking connectors made for outdoor photovoltaic wiring, along with the DC cable protection accessories that go with them..
Also supplied in this range:
- Solar panels
- Solar inverters
- Batteries and charge controllers
- Earthing kits for solar plants
- DC cable protection accessories
Need a size that isn’t listed?
Most copper and G.I items are made to order, and we supply many products beyond this list. Send the item, size and quantity and we will quote.
